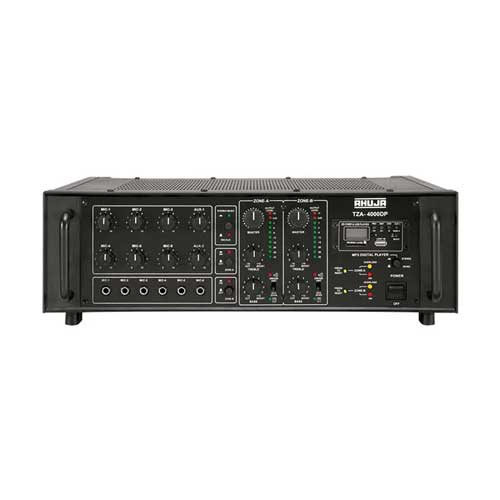

Ahuja TZA-4000DPM 400 Watts PA Amplifiers

Ahuja TZA-4000DPM 400 Watts PA Amplifiers in Bangladesh

The Ahuja TZA-4000DPM 400 Watts PA Mixer Amplifier stands as a premier dual-zone audio solution engineered specifically to meet these rigorous commercial demands.

Delivering a powerful 400 Watts Maximum output (200W + 200W RMS), the TZA-4000DPM elevates the classic dual-zone amplifier design by integrating a feature-rich digital media player complete with an LCD display and remote control. Engineered by Ahuja—South Asia's most recognized authority in public address infrastructure—this heavy-duty unit eliminates the clutter of external playback devices while offering total control over two independent acoustic zones. Built to withstand high ambient temperatures, dusty environments, and unpredictable grid power, the TZA-4000DPM provides an unmatched combination of digital convenience and industrial-grade acoustic performance.

Dual-Zone Power Architecture: Independent Master Control Matrix

The defining engineering strength of the Ahuja TZA-4000DPM is its dual-zone power amplification structure. Generating a rated power output of 200 Watts + 200 Watts RMS at 10% THD (and up to 300W + 300W Max), the unit functions as two separate, high-powered amplifiers contained within a single industrial chassis. This dual-engine design gives operators full independence over Zone A and Zone B, including individual master volume controls, active bass, and treble adjustments for each zone.

This dual-zone flexibility solves complex installation challenges effortlessly. For example, in a large mosque setup, sound technicians can drive high-power outdoor minaret horn speakers through Zone A while running gentle indoor column speakers through Zone B at a reduced volume level. Front-panel Zone ON/OFF toggle switches allow operators to mute an entire coverage area instantly without disrupting playback in the adjacent zone.

Built-In Digital MP3 Player & Stereo/Mono Switching

Equipped with an integrated digital audio player, the TZA-4000DPM accepts USB flash drives, SD cards, and MMC cards directly on the front panel. A clear LCD screen provides file track information, while a dedicated wireless remote control allows seamless track selection from a distance. The digital player circuit includes its own dedicated volume level knob, enabling smooth fade-ins and audio blending alongside live microphone feeds.

For mobile event operators, cultural clubs, and DJ performance setups, the amplifier features a selectable Stereo/Mono mode switch. In Stereo mode, the amplifier processes discrete Left and Right channels from CD players, laptops, or the internal MP3 player, creating rich spatial audio separation across two speaker banks. In Mono mode, vocal microphone inputs and music feeds are summed and distributed evenly across both zones, ensuring absolute speech clarity regardless of listener positioning.

Comprehensive Input Matrix & Intelligent Driver Protection

The TZA-4000DPM functions as a comprehensive mixing hub, offering 6 Microphone inputs and 2 Auxiliary inputs alongside CD/Stereo line inputs. Each microphone channel features its own rotary gain control, enabling precise level balancing for multi-speaker panel discussions, choir performances, or complex religious assemblies.

To protect connected loudspeakers, Ahuja integrated a dedicated Box Speaker / Driver Unit selector switch for each individual zone. When set to "Driver Unit" mode for outdoor reflex horn speakers, the internal circuit automatically cuts low-frequency bass boost. This active filter prevents low-end mechanical stress from damaging delicate horn diaphragms, significantly extending speaker lifespan while sharpening speech intelligibility over vast outdoor distances. Each zone offers low-impedance 4Ω and 8Ω terminal taps alongside high-impedance 70V and 100V line outputs for distributed long-distance speaker runs.

Instant 24V DC Battery Crossover & Circuit Defense

Power grid fluctuations and unexpected load-shedding during important events are handled seamlessly by the TZA-4000DPM's Dual-Power Architecture. Operating on standard AC mains (220–240V 50/60Hz), the amplifier also includes heavy-duty terminal blocks for a 24V DC battery bank (utilizing two 12V automotive batteries wired in series).

If AC mains power drops out, the internal power monitor transfers operation to 24V DC battery power instantly. The switchover happens in a fraction of a second with zero audio dropouts, loud clicks, or system reboots, keeping speeches and broadcasts active during electrical failures. For long-term operational safety, resettable circuit breakers and thermal overload cut-offs defend internal transformers against accidental speaker short circuits or impedance overloads.

Real-Life Usage Scenarios in Bangladesh

The dual-zone capability, digital media integration, and high wattage output of the Ahuja TZA-4000DPM make it a versatile audio anchor across local settings:

• Large Central Mosques & Islamic Centers: Drives high-power outdoor horn speakers on Zone A for long-range Azan broadcasts while independently managing indoor column speakers on Zone B for congregation members inside.

• Educational Institutions & Auditoriums: Broadcasts announcements to outdoor grounds via Zone A while routing background audio or lectures to indoor hallways via Zone B.

• Garment Manufacturing Plants & Factories: Functions as a central multi-floor paging hub across production areas in Gazipur and Narayanganj using 100V line speaker distribution.

• Mobile DJ Sets & Cultural Programs: Delivers energetic stereo music playback via USB/SD card inputs alongside crisp microphone amplification for event hosts.

✅ Key Features

• 400W Maximum Dual-Zone Output: Delivers robust 400W Max (200W + 200W RMS) amplification across two independently controlled zones.

• Integrated Digital Media Player: Plays audio directly from USB drives, SD cards, and MMC cards with full LCD display and remote control support.

• Independent Dual-Zone Equalization: Separate master volume, bass, and treble controls for Zone A and Zone B from a single panel.

• 6 Mic & 2 Aux Inputs: Connect up to 6 speech microphones or mix live vocal feeds with auxiliary stereo audio sources.

• Stereo / Mono Ambience Switch: Effortlessly switch between rich stereo music reproduction and summed mono speech broadcasting.

• Horn Driver Unit Protection: Automatically cuts low bass frequencies in "Driver Unit" mode to protect horn speaker diaphragms from damage.

• Instant 24V DC Battery Backup: Automatically transfers to battery power during load-shedding without audio interruption.

• 70V & 100V Line Outputs: Run long speaker cable distances across large complexes without experiencing signal resistance loss.

✅ Ideal For

The Ahuja TZA-4000DPM 400 Watts PA Amplifier is custom-built for high-demand, multi-area audio applications across Bangladesh:

• Mosques & Religious Complexes: Ideal for running outdoor minaret horns and indoor prayer column speakers with separate volume settings.

• Schools, Colleges & Universities: Essential for campus-wide paging, athletic field announcements, and indoor auditorium setups.

• Factories & Industrial Facilities: Excellent choice for powering multi-floor background paging networks using 100V line distribution.

• Event Management & Sound Rental Providers: Built-in MP3 player, dual-zone control, and 24V DC battery compatibility make it a complete mobile rig.

• Auditoriums & Community Halls: Delivers high-clarity speech reinforcement and stereo music playback for civic functions.

✅ Why Choose the Ahuja TZA-4000DPM 400 Watts PA Amplifier?

Built-In Digital Convenience

The inclusion of a built-in MP3 player with USB, SD card slots, and remote control eliminates the need to carry external media players. It streamlines your setup, reduces cabling, and provides a clean all-in-one playback solution.

Two Independent Amplifiers in One

The TZA-4000DPM functions as two separate power amplifiers in a single chassis. Its dual-zone design allows you to manage two distinct acoustic environments with separate tone and volume adjustments without buying extra gear.

Uninterrupted Dual-Power Reliability

Power cuts during live events or religious ceremonies are handled automatically. The instant 24V DC battery crossover ensures your public address system stays active when AC grid power fails.

Proven Long-Term Industrial Durability

Built with heavy-duty copper transformers, an all-steel chassis, and resettable overload protection, the TZA-4000DPM offers years of daily operational service under continuous high-volume demands.

✅ Why Buy This Product

Choosing the Ahuja TZA-4000DPM 400 Watts PA Amplifier means securing total authority over your public address setup. From managing complex dual-zone religious broadcasts to running live events with USB music playback, its 400W max power reserve and digital convenience ensure every listener hears crystal-clear sound.

Order the Ahuja TZA-4000DPM 400 Watts PA Amplifier today to enjoy built-in MP3 playback, smart driver protection, and legendary dual-zone power! Elevate your public address infrastructure with Bangladesh's most complete 400-watt commercial amplifier!
