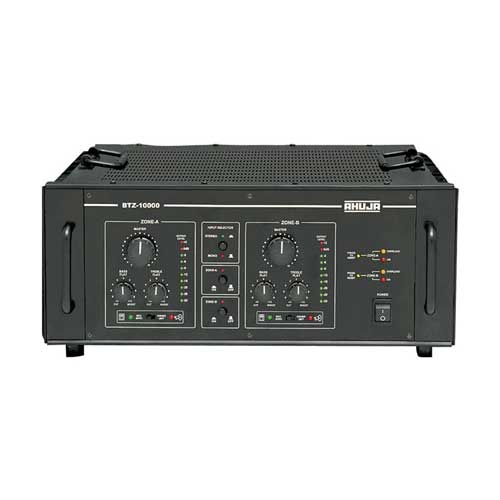

Ahuja BTZ-10000 1000 Watts PA Amplifiers

Ahuja BTZ-10000 1000 Watts PA Amplifiers in Bangladesh

The Ahuja BTZ-10000 1000 Watts 2-Zone PA Power Amplifier is engineered specifically to function as the heavy-duty power core for demanding commercial public address and sound reinforcement systems.

Generating a massive 1000 Watts RMS total output (500W + 500W RMS), the BTZ-10000 allows audio operators to run two independent acoustic environments from a single heavy-duty 40 kg steel chassis. Built by Ahuja, this power amplifier provides the current capability, thermal headroom, and line distribution options needed for long-distance broadcasting across mega religious complexes, outdoor grounds, educational institutions, and industrial plants.

Dual-Zone Architecture: 500W + 500W Independent Power Matrix

The core strength of the Ahuja BTZ-10000 lies in its dual-zone power amplification architecture. Delivering 500 Watts + 500 Watts RMS at 10% THD (and up to 750W + 750W Maximum power), the unit operates as two distinct high-power amplifiers housed in a single chassis. Each zone features its own independent Master volume control, active Bass, and Treble tone adjustments.

This dual-zone independence solves complex installation challenges effortlessly. In large mosques or multi-area venues, operators can drive high-power outdoor minaret horn speakers on Zone A while running soft indoor column or ceiling speakers on Zone B. Front-panel Zone ON/OFF switches allow operators to isolate or mute an entire coverage area instantly without altering the volume settings of the remaining zone.

Stereo / Mono Flexibility & Line Input Routing

Designed to handle both high-fidelity music reproduction and long-range voice broadcasting, the BTZ-10000 includes a versatile Stereo / Mono Mode selector switch.

• Stereo Mode: Processes discrete Left and Right channels from DJ audio consoles, CD players, or laptops, delivering spatial separation across two distinct speaker banks.

• Mono Mode: Combines incoming audio signals and routes them uniformly across both Zone A and Zone B speaker outputs. This ensures every speech or announcement is distributed with full clarity regardless of where listeners are standing.

Each zone is equipped with dedicated Line Inputs and Line Outputs (1V/1kΩ). This makes it simple to feed the amplifier directly from outboard mixing consoles (like the Ahuja AMX-912DP) or link multiple BTZ-10000 units together for massive multi-kilowatt sound systems.

Active Horn Protection & Flexible Output Options

To protect connected loudspeakers, the BTZ-10000 features an active Box Speaker / Driver Unit selector switch for each individual zone. When driving high-efficiency outdoor reflex horn speakers, switching to "Driver Unit" mode automatically attenuates low-frequency bass boost. This active filter prevents mechanical low-end stress from damaging delicate horn diaphragms, extending driver life while keeping voice announcements crisp over long distances.

For versatile speaker system integration, each zone provides both low-impedance (4Ω, 8Ω) terminal taps and high-impedance (70V, 100V) line outputs. The 100V line distribution mode allows running speaker cables over hundreds of meters across large facilities without experiencing signal power loss. Dual LED bar-graph signal indicators on the front panel provide real-time visual level monitoring for both zones.

Uninterrupted 36V DC Battery Crossover & Safety Engineering

Unexpected electrical load-shedding and power cuts during major events are handled seamlessly by the amplifier's Dual-Power Architecture. Operating on standard AC mains (220–240V 50/60Hz), the rear panel also includes heavy-duty terminal connections for a 36V DC battery bank (utilizing three 12V automotive batteries connected in series).

If AC grid power fails, the amplifier transfers its power draw to the 36V DC battery system in a fraction of a second without audio interruptions, loud clicks, or system restarts. For long-term operational safety, resettable circuit breakers guard internal transformers against accidental speaker short circuits or impedance overloads.

Real-Life Usage Scenarios in Bangladesh

With 1000W RMS output, dual-zone independence, and 36V DC battery backup, the Ahuja BTZ-10000 excels across demanding applications:

• Large Central Mosques & Prayer Grounds: Drives long-range outdoor minaret horns via Zone A while managing indoor prayer hall column speakers on Zone B with independent volume control.

• Educational Auditoriums & Campus Grounds: Drives outdoor athletic field speakers while managing indoor auditorium arrays from a single amplifier rack.

• Garment Manufacturing Plants & Industrial EPZs: Powers multi-floor 100V line paging networks across large factory complexes in Gazipur, Savar, and Narayanganj.

• Mobile DJ Rigs & Event Sound Providers: Delivers high-energy stereo playback when connected to external DJ mixers for open-air cultural programs.

✅ Key Features

• 1000W RMS Total Dual-Zone Output: Delivers 500W + 500W RMS (up to 750W + 750W Max) across two separate zones.

• Independent Zone Equalization: Separate Master volume, Bass, and Treble controls for Zone A and Zone B.

• Stereo / Mono Operation Switch: Easily toggle between spatial stereo music separation and summed mono speech broadcasting.

• Active Horn Driver Protection: Defeats low-bass frequencies in "Driver Unit" mode to protect horn speaker diaphragms from damage.

• Instant 36V DC Battery Backup: Automatically switches to 36V battery power (3 × 12V car batteries) during AC grid outages.

• 70V & 100V Line Outputs: Run speaker cables across long distances without signal loss.

• LED Bar-Graph Level Display: Visual LED output monitoring for precise gain management on both channels.

✅ Ideal For

• Central Mosques & Islamic Centers: Ideal for running outdoor minaret horns and indoor prayer speakers with separate volume settings.

• Schools, Colleges & Stadiums: Perfect for campus-wide public address and outdoor sports ground coverage.

• Factories & Industrial Warehouses: Drives high-capacity 100V line speaker networks across wide production floors.

• Sound Rental Companies: Rugged 40 kg all-steel chassis built for touring and heavy outdoor stage setups.

✅ Why Choose the Ahuja BTZ-10000 1000 Watts PA Amplifier?

High Power Output Reserve

With a full 1000W RMS power output reserve (500W + 500W RMS), the BTZ-10000 easily powers large arrays of speakers without audio clipping or signal strain.

Flexible Two-in-One Dual-Zone Design

Operating as two high-power amplifiers in a single chassis, it allows you to manage two separate audio zones with custom tone and volume settings without purchasing additional gear.

Uninterrupted 36V DC Battery Operation

Never worry about power grid failures during live broadcasts or religious gatherings. The instant 36V DC battery transfer ensures uninterrupted sound.

✅ Why Buy This Product

Choosing the Ahuja BTZ-10000 1000 Watts PA Power Amplifier gives you total authority over large-scale commercial sound distribution. Whether powering wide outdoor grounds or managing multi-zone commercial paging, its 1000W RMS reserve and dual-zone control ensure your audio is delivered with clarity and authority.

Order the Ahuja BTZ-10000 1000 Watts PA Power Amplifier today for dual-zone performance and long-term reliability!
