Ahuja SSA-100M 100 Watts PA Mixer Amplifier

Ahuja SSA-100M 100 Watts PA Mixer Amplifier in Bangladesh

The Ahuja SSA-100M 100 Watts PA Mixer Amplifier is a classic workhorse engineered to serve as an affordable, high-efficiency centerpiece for public address setups.

Delivering a rated power output of 100 Watts RMS (and up to 130 Watts Maximum), the SSA-100M provides clean speech amplification and background music distribution. Built by Ahuja—South Asia's leading pioneer in commercial audio equipment—this unit is designed to handle continuous daily operation in challenging electrical environments, making it a staple across educational, religious, and commercial sectors in Bangladesh.

Versatile Input Matrix & Audio Signal Expansion

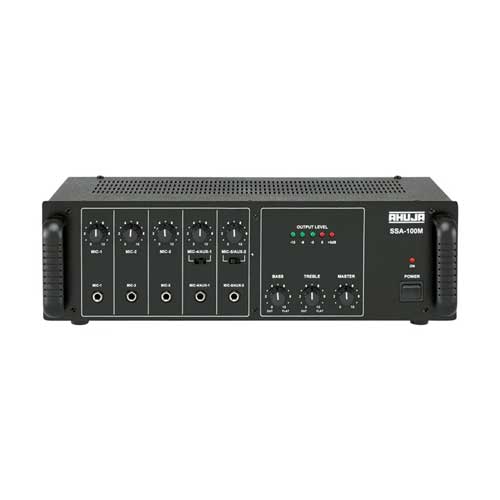

The front panel of the Ahuja SSA-100M serves as a comprehensive 5-channel mixing hub. Equipped with 5 Microphone inputs alongside 2 Auxiliary inputs, operators can connect multiple vocalists, speakers, or panel delegates while blending background music from laptops, media players, or external audio receivers. Each input channel features individual rotary volume controls for precise level adjustment.

For audio signal extension, the rear panel includes dedicated Preamplifier and Line Outputs (Preamp 200mV/600Ω, Line 1V/1kΩ). These outputs allow sound operators to record live proceedings directly onto external recorders or daisy-chain the master signal to additional high-power booster amplifiers (such as the Ahuja SPA-5000EM or SPA-10000) for massive venue coverage expansions.

Active Tone Controls & Flexible Speaker Taps

To ensure optimum voice clarity and acoustics across different room layouts, the SSA-100M features active Bass and Treble tone controls. These rotary cut-type tone controls allow operators to attenuate muddy low frequencies or tame harsh high frequencies to match the acoustic profile of the installation area.

The amplifier provides comprehensive output terminals to support both low-impedance and high-impedance speaker configurations:

• Low-Impedance Taps (4Ω, 8Ω, 16Ω): Ideal for connecting small arrays of direct-drive box speakers or low-impedance wall mounts nearby.

• High-Impedance Line Taps (70V & 100V): Designed for distributed line speaker networks. The 100V line mode allows running speaker wiring over long distances to multiple ceiling or column speakers without encountering signal resistance loss.

Instant 24V DC Battery Backup & Circuit Safety

Electrical load-shedding and unexpected power cuts during important events are handled seamlessly through the SSA-100M's Dual-Power Architecture. Operating on standard AC mains (220–240V 50/60Hz), the unit also features heavy-duty rear screw terminals for a 24V DC battery connection (using two 12V automotive batteries wired in series).

If AC grid power fails, the amplifier transfers its operational power draw to the 24V DC battery system instantaneously. The transfer happens without audio dropouts, loud clicks, or system restarts, ensuring uninterrupted public address broadcasts. Resettable circuit fuses and thermal cut-offs protect internal transformers against accidental speaker line short circuits or impedance overloads.

Real-Life Usage Scenarios in Bangladesh

With its compact 10.5 kg steel chassis, 5-mic capability, and battery backup, the Ahuja SSA-100M is tailored for medium-scale applications:

• Neighborhood Mosques & Prayer Rooms: Powers indoor column speakers and small outdoor minaret horns with clear speech intelligibility.

• School Assemblies & Classrooms: Drives hallway loudspeaker arrays and morning assembly grounds reliably.

• Corporate Conference Rooms & Offices: Mixes multiple delegate desktop microphones with auxiliary presentations.

• Retail Outlets & Showrooms: Delivers continuous background music and paging announcements via 100V line ceiling speakers.

✅ Key Features

• 100W RMS / 130W Max Power Output: Delivers clean output power designed for medium-sized venues.

• 5 Mic & 2 Aux Inputs: Connect up to 5 speech microphones simultaneously while mixing auxiliary media sources.

• Active Bass & Treble Tone Controls: Easily shape audio frequencies for enhanced speech clarity.

• Instant 24V DC Battery Transfer: Automatically transfers to battery power (2 × 12V batteries) during AC grid outages.

• Preamp & Line Output Connections: Hook up additional booster amplifiers or direct audio recording equipment.

• 70V & 100V Line Outputs: Run long speaker cable lines across facilities without signal power loss.

✅ Ideal For

• Mosques & Religious Halls: Great for running indoor column speakers and outdoor horns.

• Educational Institutions: Perfect for campus announcements, lecture halls, and morning assemblies.

• Commercial Offices & Stores: Ideal for driving distributed 100V background music and paging systems.

• Small Event Operators: Compact, durable PA amplifier designed for daily portable address setups.

✅ Why Choose the Ahuja SSA-100M PA Mixer Amplifier?

5-Channel Microphone Mixing

With 5 dedicated mic inputs on the front panel, you can run panel discussions, stage speakers, or prayer services without needing an outboard mixing console.

Uninterrupted 24V DC Battery Reliability

Power grid failures won't interrupt your broadcasts. The 24V DC battery switchover ensures continuous, uninterrupted sound during load-shedding.

Proven Build Quality

Housed in a rugged steel metal chassis with heavy-duty copper transformers, the SSA-100M is built for years of continuous service.

✅ Why Buy This Product

Choosing the Ahuja SSA-100M 100 Watts PA Mixer Amplifier gives you an affordable, reliable commercial sound foundation. Whether running mosque broadcasts or managing school paging networks, its 100W RMS power capacity, 5-mic mixing, and battery backup deliver clear audio performance.

Order the Ahuja SSA-100M 100 Watts PA Mixer Amplifier today for medium-wattage public address distribution!
