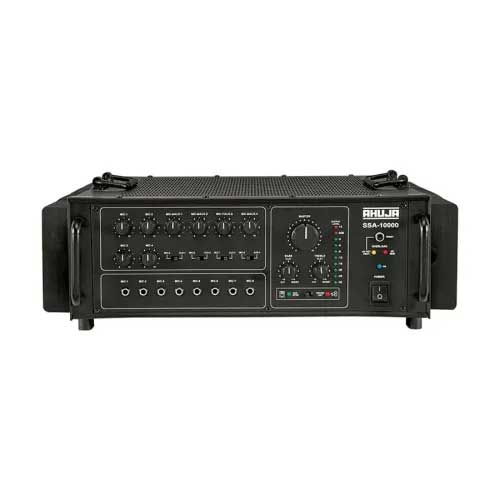

Ahuja SSA-10000 1000 Watts PA Mixer Amplifier

Ahuja SSA-10000 1000 Watts PA Mixer Amplifier in Bangladesh

The Ahuja SSA-10000 1000 Watts PA Mixer Amplifier is engineered specifically to serve as the heavy-duty anchor for massive public address deployments. Built by Ahuja—South Asia's leading public address equipment brand—this flagship unit delivers clean power reserves, extensive channel mixing, and circuit resilience.

Generating a massive 1000 Watts RMS output (and reaching up to 1350 Watts Maximum output), the SSA-10000 effortlessly powers large arrays of long-throw outdoor reflex horns, wide-area column speakers, and high-capacity ceiling installations. Equipped with an 8-microphone channel input matrix, 4 auxiliary inputs, and 70V/100V high-impedance line outputs, this amplifier provides uncompromised speech clarity and audio coverage over vast distances.

Massive Power Capacity & Professional Signal Expansion

The engineering cornerstone of the Ahuja SSA-10000 is its high-capacity power amplification stage. Operating at 1000W RMS at 10% THD (and up to 800W RMS at ultra-low 2% THD), the amplifier maintains low signal distortion even when pushed to high sound pressure levels. This overhead prevents voice clipping and listening fatigue during long public gatherings.

For expanded multi-kilowatt event setups, the SSA-10000 offers comprehensive rear-panel signal routing. Preamplifier and Line Outputs allow sound engineers to daisy-chain the signal out to multiple booster power amplifiers (such as the Ahuja SPA-10000 or SPA-15000) or feed live multi-channel recordings directly into external gear. Furthermore, a dedicated Line Input allows the unit to bypass its front-panel mixer and function strictly as a 1000W slave power amplifier when driven by external mixing consoles.

Versatile 8-Mic Channel Mixer & Horn Protection Architecture

The front-panel mixing section is designed for multi-performer events, multi-speaker panels, and large-scale religious services. Featuring 8 individual Microphone inputs alongside 4 Auxiliary inputs (including a dedicated RCA connector for media playback devices), the SSA-10000 provides total control over complex live audio mixing.

To preserve speaker longevity, the unit includes an integrated Box Speaker / Driver Unit selector switch. When driving high-efficiency outdoor horn driver units, switching to "Driver Unit" mode automatically attenuates excessive low-frequency bass boost. This active filter prevents low-end mechanical strain on horn diaphragms, preventing driver burnout while projecting crisp, intelligible voice calls across long outdoor distances.

Uninterrupted 48V DC Battery Backup & Heavy-Duty Protection

Power grid fluctuations and unexpected electrical blackouts are handled reliably through the amplifier's dual-power capability. Operating on standard 220–240V AC mains, the rear panel also houses heavy-duty terminals for a 48V DC battery bank (utilizing four 12V car batteries connected in series).

When AC grid power fails, the amplifier transfers power draw to the 48V DC battery system. The switchover happens instantly with zero audio interruption, loud pops, or system resets. For operational safety, the amplifier is guarded by rear-mounted resettable circuit breakers and a main magnetic circuit breaker (MCB) that defend internal transformers against thermal overload or short circuits.

Real-Life Usage Scenarios in Bangladesh

With its 1000W output capacity, multi-mic flexibility, and heavy-duty chassis, the Ahuja SSA-10000 is built for large PA projects:

• Mega Mosques & National Eidgah Grounds: Powers dozens of high-wattage minaret horn drivers alongside internal column speaker networks for massive congregations.

• Stadiums, Sports Arenas & Open-Air Grounds: Projects commentaries, emergency announcements, and live speeches across huge outdoor seating areas.

• Large Manufacturing Plants & Export Processing Zones: Functions as a centralized paging amplifier driving distributed 100V line speaker networks across sprawling factory floors.

• Political Rallies & Open-Air Cultural Events: Easily handles complex multi-microphone stage setups with auxiliary audio playback for massive public crowds.

✅ Key Features

• 1000W RMS / 1350W Max Power: Delivers high output power reserves designed for wide-area coverage.

• 8 Mic & 4 Aux Inputs: Connect up to 8 speech microphones simultaneously while mixing multiple auxiliary sources.

• Dedicated RCA Aux Input: Aux-4 uses standard RCA sockets for direct CD/DVD or media player connections.

• Active Horn Driver Protection: Automatically defeats bass boost in "Driver Unit" mode to protect horn speaker diaphragms.

• Instant 48V DC Battery Transfer: Switches seamlessly to 48V battery power (4 × 12V batteries) during AC grid outages.

• Booster Power Amp Capability: Line Input option allows bypassing the mixer stage to use the unit purely as a high-power slave amplifier.

• Comprehensive Circuit Defense: Equipped with resettable circuit breakers and an MCB for short-circuit and overload defense.

✅ Ideal For

The Ahuja SSA-10000 1000 Watts PA Mixer Amplifier is built for extensive, high-demand PA systems:

• National Mosques & Prayer Grounds: Perfect for driving vast horn speaker networks and indoor column setups.

• Educational Campuses & Stadiums: Ideal for campus-wide paging and outdoor athletic announcements.

• Sprawling Factory Complexes: Drives 100V line speaker networks across industrial grounds without signal loss.

• Sound Rental Providers: Rugged 42 kg heavy-duty steel chassis built for touring and large outdoor political/cultural events.

✅ Why Choose the Ahuja SSA-10000 1000 Watts PA Amplifier?

High Mic Capacity Without Extra Mixers

With 8 microphone inputs built into the front panel, you can run large panel discussions, multi-speaker stages, or religious services without needing a separate mixing console.

Uninterrupted 48V DC Battery Backup

Maintain continuous audio during power failures. The 48V DC auto-switchover guarantees uninterrupted sound for critical public broadcasts.

Long-Distance 100V Line Output Distribution

Equipped with 70V and 100V high-impedance speaker taps, allowing you to run speaker cables over hundreds of meters across large venues without line resistance losses.

✅ Why Buy This Product

Choosing the Ahuja SSA-10000 1000 Watts PA Mixer Amplifier means investing in a high-capacity commercial sound solution. Whether broadcasting across large outdoor grounds or running factory paging systems, its 1000W RMS reserve and 8-mic mixing capabilities ensure every word reaches your audience with clarity.

Order the Ahuja SSA-10000 1000 Watts PA Mixer Amplifier today for reliable, wide-area sound coverage!
