Yarmee YC813M Conference System Central Control Unit

Yarmee YC813M Conference System Central Control Unit Prices in Bangladesh

The YCU813M Central Control Unit is the core of a wired conference discussion system, designed to manage up to 60 delegate microphone units, expandable to 120 when used with additional power modules. Engineered for boardrooms, councils, training centers, and formal meeting halls, it incorporates high-fidelity audio processing, LCD display feedback, and built-in mute control functionality.

Equipped with four audio/digital interface ports, plus XLR and RCA outputs, the unit offers flexible connectivity with external recording or sound systems. It supports four meeting modes—Limit (1/3/6 speakers), FIFO, Chairman Only, and Free mode—allowing for structured or free-form discussions. The built-in LCD display provides real‑time meeting status, audio levels, and unit control options.

With a rugged yet sleek design that fits standard 19" rack setups, and dual-safety supply options (AC & DC), this controller ensures reliable performance and secure meeting flow. Whether in large venue deployments or critical corporate environments, the YCU813M delivers professional-grade control over conferencing dynamics.

✅ Key Features

• ✅ Supports 60 wired mic units (expandable to 120 with extension power)
• ✅ Four Discussion Modes: Limited (1/3/6), FIFO, Chairman Only, Free mode
• ✅ Built-in LCD screen displays system status, volume levels, mode settings

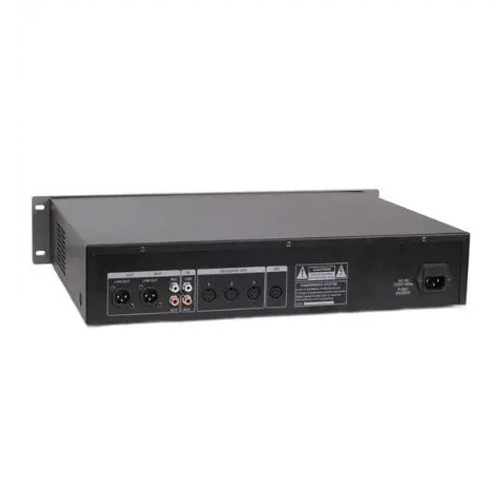

• ✅ Audio Outputs: Balanced XLR and RCA terminals for recording or PA output
• ✅ Multiple I/O Ports: Four 8P‑DIN connectors for mic-chain input/output
• ✅ Dual Power Options: AC 220–240 V or DC 24 V power source
• ✅ Master Volume Control and local mic input (6.3 mm jack)
• ✅ Muted Speaker Feedback and headphone jack support

• ✅ Rack-mountable: Standard 19" format, durable metal housing

✅ Why Choose YCU813M?

• ✅ Scalable & Efficient: Seamlessly manage up to 120 wired mic units for large conferences
• ✅ Structured Meeting Control: Flexible speaking rules with four meeting modes
• ✅ Instant Visual Feedback: LCD display simplifies real‑time monitoring and control
• ✅ Professional Audio Routing: Balanced output and headphone monitoring support audio integration
• ✅ Reliable Power Configuration: Dual-supply design ensures safe and stable operation
• ✅ Flexible Installation: Can be desk-mounted or rack-mounted based on your venue setup
