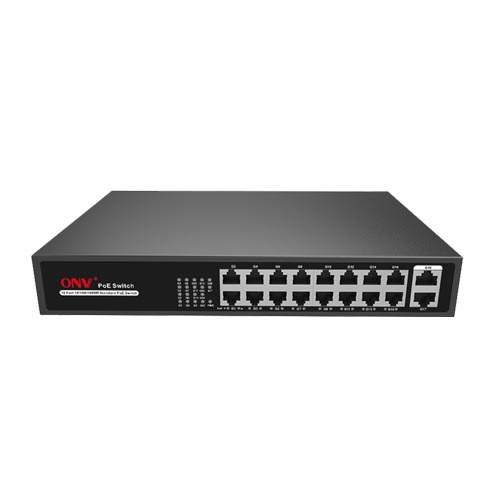

ONV H3016PS Full Gigabit 18-Port PoE Switch

Buy ONV H3016PS Full Gigabit 18-Port PoE Switch Price in Bangladesh.

The ONV-H3016PS is an advanced 18-port Power over Ethernet (PoE) switch, featuring full Gigabit capabilities for reliable and high-performance network connectivity. With 16 fixed ports supporting 10/100/1000Base-T, delivering both data and power to connected devices, and 2 uplink ports for high-speed data connectivity, this switch provides a versatile solution for diverse networking needs. Ports 1-16 support 10/100/1000Base-T auto-sensing, with full/half duplex MDI/MDI-X self-adaptation. Twisted pair transmission supports 10BASE-T, 100BASE-TX, and 1000BASE-T using Cat3, 4, 5 UTP for 10BASE-T and Cat5e or later UTP for higher speeds within a range of ≤100 meters. The switch operates based on IEEE802.3 standards, employing a Store and Forward mechanism for full wire speed and boasts a non-blocking 36Gbps switching capacity, ensuring seamless network performance. With a forwarding rate of 26.78Mpps at a 64-byte packet size, a 2K MAC table, and 2M of buffer memory, it optimizes data flow and address management. Support for Jumbo Frames with a size of 9.2k enhances data transfer efficiency. LED indicators for power (PWR, green), network link status (Link, green), and PoE activity (PoE, green) provide clear visual cues. All 16 ports support Power over Ethernet, delivering a maximum power of 30W per port in compliance with IEEE802.3af/at standards. The power supply uses pins 1/2(+) and 3/6(-), offering a total power of 160W with an input voltage range of AC100-240V. Power consumption is optimized, with less than 13W in standby mode and less than 160W at full load. The built-in power supply supports AC100~240V at 50-60Hz with a current of 4.1A. Physically, the switch is designed to operate in temperatures ranging from -20~+55°C with a humidity range of 5%90% RH (Non-condensing). For storage, it is suitable for temperatures between -40+75°C with a humidity range of 5%~95% RH (Non-condensing). Its compact dimensions measure 27018144.5mm, with a net weight of <1.25kg and a gross weight of <1.6kg. It can be installed on a desktop or in a 19-inch 1U cabinet. Certified under CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, and RoHS standards, the ONV-H3016PS comes with a 1-year warranty and lifelong maintenance support. It is equipped with lightning protection (4KV 8/20us, IP30 protection level) for enhanced durability and reliability.
