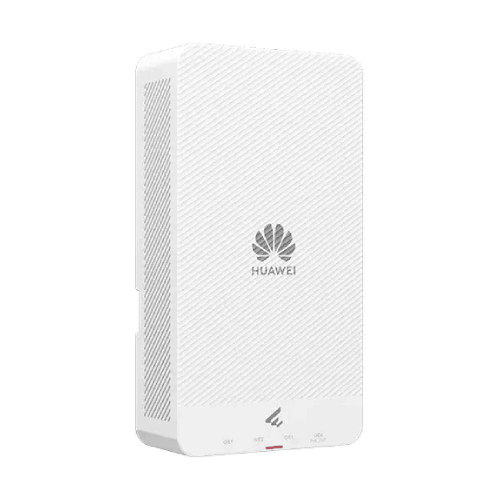

Huawei eKitEngine AP266 Wi-Fi 6 Wall Plate Dual-Radio Smart Antenna Managed PoE Access Point

Huawei eKitEngine AP266 Wi-Fi 6 Wall Plate Dual-Radio Smart Antenna Managed PoE Access Point Price in Bangladesh

The Huawei eKitEngine AP266 Wi-Fi 6 Wall Plate Dual-Radio Smart Antenna Managed PoE Access Point is designed for indoor wireless networking environments where reliable Wi-Fi connectivity and convenient wired access need to be combined in a single compact device. Built around the Wi-Fi 6 standard, the AP266 provides simultaneous wireless services over the 2.4 GHz and 5 GHz frequency bands and supports a theoretical device rate of up to 2.975 Gbps. Huawei specifies the AP266 as a wall plate access point with dual-radio operation, built-in smart antennas, PoE power, and multiple Gigabit Ethernet ports.

The AP266 is particularly suited to room-based deployments where users need both wireless connectivity and multiple wired network connections. Its wall-plate form factor makes it appropriate for environments such as hotel guest rooms, offices, commercial spaces, and other indoor areas where a conventional ceiling-mounted access point may not be the preferred deployment approach. Huawei specifically positions the AP266 for hotel rooms and commercial spaces, combining Wi-Fi 6 connectivity with multiple wired interfaces in one in-room device.

One of the most important characteristics of the Huawei AP266 is its dual-radio Wi-Fi 6 architecture. The 2.4 GHz radio uses 2×2 MIMO, while the 5 GHz radio also uses 2×2 MIMO. The official specifications list maximum channel bandwidths of 40 MHz for 2.4 GHz and 160 MHz for 5 GHz. Together, these wireless capabilities contribute to the device's specified 2.975 Gbps theoretical device rate.

The AP266 also incorporates Huawei's built-in smart antenna technology. Rather than relying solely on a conventional fixed antenna design, the smart antenna architecture is intended to help provide targeted wireless coverage and manage radio performance in indoor environments. Huawei lists the AP266 with a 20-meter optimal signal distance, which should be understood as a planning reference rather than a guaranteed coverage radius because actual wireless coverage varies according to walls, interference, construction materials, client devices, channel conditions, and deployment layout.

Another major advantage is the combination of wireless and wired connectivity. Huawei specifies five Gigabit Ethernet physical ports in total, with 10M/100M/1000M auto-sensing capability. The AP266 therefore provides more than just wireless access; it can also serve as a convenient wired connectivity point for room-based devices. Huawei's product material describes the AP266 as supporting four downlink ports, with one of those ports capable of PoE output, making the device useful for connecting equipment such as IP phones, IPTV-related devices, computers, and other networked endpoints depending on the deployment design.

Power is delivered through Power over Ethernet (PoE), with Huawei specifying IEEE 802.3af/at input compatibility for the AP266. The device has a maximum power consumption of 9.4 W excluding PoE output, while its maximum PoE output power is specified as 15 W. This approach can simplify indoor deployments because the access point can receive both network connectivity and electrical power through Ethernet infrastructure rather than requiring a separate local power adapter.

The Huawei AP266 is specified for up to 128 access users, with 64 users recommended by Huawei. These figures provide useful planning references when designing a wireless network. The actual number of users that can be served effectively will depend on traffic patterns, application requirements, client capability, interference, channel utilization, and the amount of bandwidth required by each connected device.

The AP266 is also compact. Its unboxed dimensions are 160 × 86 × 38 mm, while its unboxed weight is approximately 0.23 kg. The device supports desk, wall, ceiling on gypsum board, and junction-box installation, including 86 mm, 1-Gang 120 mm, and octagonal junction box configurations according to Huawei's published specifications.

For businesses looking for a compact Wi-Fi 6 solution that combines wireless access, smart antenna functionality, PoE, and multiple Gigabit Ethernet connections, the Huawei eKitEngine AP266 provides a practical architecture. Its combination of dual-band Wi-Fi 6, 2.975 Gbps theoretical device rate, five Gigabit Ethernet ports, and wall-plate design makes it particularly relevant for room-level network deployments.

✅ Key Features of Huawei eKitEngine AP266

✅ Wi-Fi 6 Technology: The Huawei AP266 supports IEEE 802.11ax Wi-Fi 6 technology across both the 2.4 GHz and 5 GHz frequency bands, providing a modern wireless platform for compatible client devices.

✅ Dual-Radio Architecture: AP266 uses two wireless radios, with one operating at 2.4 GHz and another at 5 GHz. Both radios use 2×2 MIMO architecture.

✅ Up to 2.975 Gbps Device Rate: Huawei specifies a theoretical device rate of up to 2.975 Gbps, making AP266 suitable for bandwidth-intensive wireless networking scenarios when compatible clients and network conditions are available.

✅ Built-In Smart Antennas: Integrated smart antenna technology is designed to provide targeted wireless coverage and help manage wireless signal quality within indoor environments.

✅ Wall Plate Design: The compact wall-plate form factor allows the access point to be positioned at room level rather than requiring a traditional ceiling-mounted AP installation.

✅ Five Gigabit Ethernet Ports: The AP266 provides five physical GE RJ45 ports, with 10M/100M/1000M auto-sensing capability.

✅ PoE Powered: The access point supports PoE input using IEEE 802.3af/at, allowing network infrastructure to provide both power and data connectivity through Ethernet.

✅ PoE Output: Huawei specifies a maximum PoE output power of 15 W, enabling the appropriate downstream port to provide power to compatible network equipment within supported deployment conditions.

✅ Up to 128 Access Users: The AP266 supports a maximum of 128 access users, while Huawei recommends 64 access users for deployment planning.

✅ 20 m Optimal Signal Distance: Huawei specifies an optimal signal distance of 20 meters. Actual coverage should be determined through site conditions and wireless planning.

✅ 160 MHz 5 GHz Channel Bandwidth: The 5 GHz radio supports a maximum channel bandwidth of 160 MHz, while the 2.4 GHz radio supports up to 40 MHz.

✅ Compact Construction: Measuring 160 × 86 × 38 mm and weighing approximately 0.23 kg without packaging, the AP266 is designed for compact indoor deployment.

✅ Wi-Fi 6 Performance for Modern Indoor Networks

Wi-Fi 6, based on IEEE 802.11ax, is designed to improve wireless network efficiency in environments where numerous client devices compete for network resources. Compared with older Wi-Fi generations, Wi-Fi 6 introduces technologies such as OFDMA, MU-MIMO, 1024-QAM, BSS coloring, and Target Wake Time. These technologies can improve spectrum utilization and wireless efficiency when supported by compatible access points and client devices.

The Huawei AP266 uses Wi-Fi 6 across both 2.4 GHz and 5 GHz. Its 2×2 MIMO configuration on both radios provides multiple spatial streams for wireless communication. Huawei specifies a maximum theoretical device rate of 2.975 Gbps, although actual throughput will always depend on the client device, signal conditions, channel configuration, network infrastructure, protocol overhead, and environmental interference.

The 5 GHz radio supports up to 160 MHz channel bandwidth. Wider channels can provide higher theoretical wireless throughput when spectrum conditions and client devices support them. In real deployments, network administrators should select channel configurations based on the available spectrum and surrounding wireless environment rather than assuming that the maximum channel width will always produce the best practical result.

The dual-radio configuration also allows compatible devices to connect across two different frequency bands. The 2.4 GHz band generally provides greater propagation through obstacles, while 5 GHz can provide higher wireless performance under suitable conditions. The AP266 combines these two bands within a single wall-mounted access point.

✅ Smart Antenna Design

The built-in smart antenna system is one of the defining characteristics of the Huawei AP266. Huawei identifies the device as a smart antenna access point and specifies antenna gain values of 2 dBi combined gain for 2.4 GHz and 1 dBi combined gain for 5 GHz, with a peak value of 4 dBi per chain for both bands.

Smart antenna technology is particularly relevant in indoor environments where the location and orientation of client devices can change frequently. A room-level access point can experience reflections, obstructions, and varying client positions. An intelligent antenna design can help the wireless system adapt its signal behavior to the deployment environment.

For network planners, however, antenna specifications should not be interpreted as a guarantee of a particular indoor coverage area. Building materials, room layouts, walls, furniture, interference from neighboring networks, and client antenna quality can all influence the actual wireless experience.

Huawei lists 20 meters as the AP266's optimal signal distance, which provides a useful reference for initial deployment planning. Detailed site surveys remain appropriate for larger or more demanding installations.

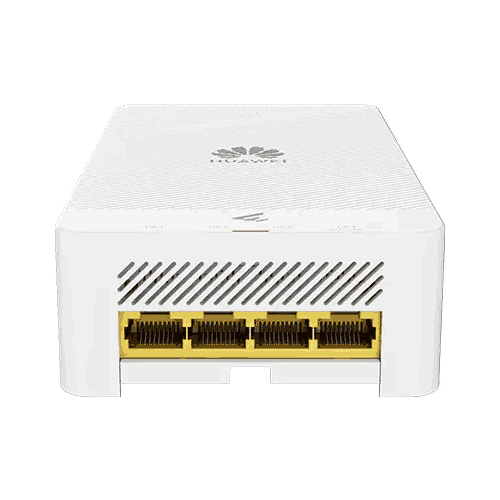

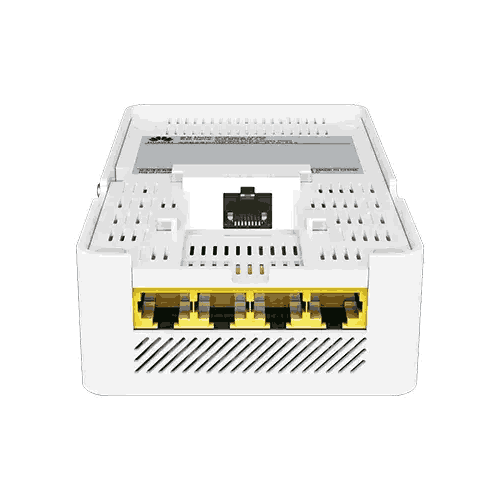

✅ Five Gigabit Ethernet Ports for Room-Level Connectivity

A major feature of the Huawei eKitEngine AP266 is its combination of wireless access with multiple wired Ethernet ports. The official product specification lists five GE RJ45 ports, all supporting 10M/100M/1000M auto-sensing.

This design can be particularly useful in hotel rooms, offices, commercial spaces, and similar environments where multiple wired devices may need network connectivity in addition to Wi-Fi.

For example, a room could potentially use wired connectivity for a desktop computer, IP phone, IPTV-related equipment, or other Ethernet-based devices, while guests or employees simultaneously use Wi-Fi. The exact device configuration should follow the network architecture and the supported functionality of the deployed AP and connected equipment.

Huawei's own eKit material highlights the AP266 as a room-level device capable of combining wired and wireless connectivity, reducing the need for a separate switch within the room in appropriate deployments.

✅ PoE Power and Deployment Efficiency

The Huawei AP266 uses PoE as its power supply method and supports IEEE 802.3af/at input. This allows compatible PoE network infrastructure to deliver power and network connectivity to the access point through Ethernet cabling.

PoE can be useful for commercial networking because it reduces the need for separate electrical adapters at every access-point location. Network infrastructure can centralize power delivery through compatible switches or PoE equipment.

The AP266 has a specified maximum power consumption of 9.4 W excluding PoE output. Huawei also specifies a maximum PoE output power of 15 W. The power budget of the upstream PoE infrastructure should therefore be considered when planning deployments involving downstream PoE-powered equipment.

✅ Designed for Hotels, Offices, and Commercial Spaces

The wall-plate format makes AP266 particularly suitable for room-level networking. Huawei specifically describes the AP266 as a wall plate AP for hotel rooms and commercial spaces.

In a hotel environment, each room can benefit from localized Wi-Fi coverage while the Ethernet ports can support room-based wired services. Huawei has also documented an eKit hotel deployment in which AP266 units were used to provide Wi-Fi 6 coverage in guest rooms and communal areas, with PoE supplied from Huawei eKit switches.

In office environments, the AP266 can provide a combination of wireless connectivity and wired access at a room or workspace level. This can be useful for meeting rooms, private offices, small commercial spaces, and other areas where multiple network endpoints are located close together.

The compact wall-plate design can also integrate more naturally into an indoor room environment than a larger conventional access point.

✅ User Capacity and Wireless Planning

Huawei specifies a maximum of 128 access users for AP266 and recommends 64 access users. These figures are important for network planning but should not be treated as a guarantee of a particular level of throughput for every connected device.

A network with dozens of connected smartphones performing light web browsing has a very different traffic profile from a network with dozens of users simultaneously streaming high-resolution video, transferring large files, or using latency-sensitive applications.

For this reason, the recommended 64-user figure can be a useful planning reference while the actual deployment should consider application requirements, traffic distribution, wireless interference, channel utilization, and upstream Internet or LAN capacity.

The dual-radio architecture also provides simultaneous 2.4 GHz and 5 GHz wireless services, allowing compatible client devices to use the appropriate frequency band.

✅ Compact Wall Plate Installation

The AP266 measures 160 mm in height, 86 mm in width, and 38 mm in depth without packaging. Its unboxed weight is approximately 0.23 kg.

Huawei specifies multiple installation options, including desk installation, wall installation, ceiling installation on gypsum board, and junction-box installation. The junction-box compatibility includes 86 mm, 1-Gang 120 mm, and octagonal configurations.

This flexibility allows network designers to select an installation method appropriate to the physical environment. In hotel rooms and similar spaces, wall-plate mounting can provide a clean room-level network endpoint without the visual footprint of a larger ceiling AP.

The compact dimensions are also useful where installation space is limited.

✅ Network Security and Wi-Fi 6 Efficiency

Wi-Fi 6 provides several mechanisms designed to improve wireless network efficiency in environments with multiple active devices. Technologies associated with the IEEE 802.11ax generation include OFDMA, MU-MIMO, 1024-QAM, BSS coloring, and Target Wake Time.

OFDMA can divide wireless channel resources into smaller resource units so that multiple devices can be scheduled more efficiently. MU-MIMO enables supported devices to communicate using multiple spatial streams. BSS coloring can help wireless networks distinguish overlapping basic service sets in congested environments.

These technologies do not eliminate interference or guarantee a specific throughput level, but they form part of the Wi-Fi 6 architecture used by the AP266.

For organizations upgrading from older Wi-Fi infrastructure, the AP266 provides a Wi-Fi 6 platform while retaining compatibility with client devices that use earlier IEEE 802.11 standards supported by its radios.

✅ Huawei eKitEngine AP266 for Hotel Networking

Hotel networking places particular demands on access points because each guest room may contain multiple wireless and wired devices. Smartphones, laptops, tablets, smart TVs, IPTV systems, IP phones, and other connected equipment can all contribute to network traffic.

The AP266's wall-plate architecture is well aligned with this type of environment because the access point can be positioned within or near the guest room while providing both wireless and wired connectivity.

Huawei's documented hotel deployment experience shows AP266 units being used for guest-room Wi-Fi 6 coverage, with Huawei eKit switches supplying PoE. The deployment demonstrates how the AP266 can form part of a broader Huawei eKit network architecture.

For hotel network planners, the combination of room-level wireless coverage and multiple Gigabit Ethernet interfaces can simplify the network design compared with deploying separate wireless and wired devices in every room.

✅ Huawei AP266 for Office and SME Networks

Small and medium-sized businesses often require a network solution that can accommodate both wireless users and wired devices without excessive infrastructure complexity.

The AP266 provides a combination of Wi-Fi 6 access and multiple Gigabit Ethernet interfaces in a compact form factor. This can make it relevant for offices, retail environments, small commercial premises, and other indoor deployments.

The device's dual-radio architecture provides 2.4 GHz and 5 GHz wireless connectivity, while the Ethernet ports provide physical network connectivity for wired endpoints.

Huawei identifies AP266 within its eKit portfolio, which is positioned toward SME networking environments.

✅ Reliable Indoor Connectivity Architecture

The AP266 is specified for an operating temperature range of 0°C to 40°C and an operating relative humidity range of 5% to 95% non-condensing. Huawei also specifies that at altitudes from 1,800 m to 5,000 m, the maximum operating temperature decreases by 1°C for every 300 m increase in altitude.

The access point also includes specified surge protection characteristics for its PoE and non-PoE ports. Huawei lists differential-mode protection for PoE ports and common-mode protection for PoE and non-PoE ports under the conditions stated in the official specifications.

These specifications provide useful information for professional network planning, especially when AP266 units are deployed as part of a larger commercial infrastructure.

✅ Why Choose Huawei eKitEngine AP266?

The Huawei eKitEngine AP266 brings several networking functions together in a single wall-plate device. Its Wi-Fi 6 dual-radio architecture provides simultaneous 2.4 GHz and 5 GHz wireless connectivity, while the 2.975 Gbps theoretical device rate gives it a strong wireless performance specification for its class.

The integrated smart antennas are another important feature. Huawei designed AP266 with built-in smart antenna technology rather than treating the access point as a simple fixed-antenna wireless device.

The five Gigabit Ethernet ports make the AP266 particularly useful when wired and wireless networking need to coexist in the same room. Instead of installing a separate room-level access point and switch in every location, the AP266 can consolidate those functions within a compact device where the deployment architecture supports it.

PoE support further simplifies infrastructure because the access point can receive power and network connectivity through Ethernet. The additional PoE output capability can also provide power to compatible downstream equipment within the specified power budget.

Its compact 160 × 86 × 38 mm physical design makes it suitable for indoor installations where space and appearance matter. Huawei's supported installation methods provide additional flexibility for different building layouts.

For hotels, offices, commercial spaces, and SME environments requiring localized Wi-Fi 6 coverage, the AP266 provides a combination of wireless performance, wired connectivity, PoE, and smart antenna technology in one compact wall-plate platform.
